Lub laser iav txiav tshuab yog cov cuab yeej siv siab tshaj plaws uas muab cov txiaj ntsig raug thiab ua tau zoo. Nrog nws cov nqaj laser meej, nws tuaj yeem txiav los ntawm iav nrog kev siv zog tsawg, tawm hauv qhov huv thiab polished tiav.

Lub tshuab no zoo meej rau cov neeg uas xav txiav cov qauv tsim ntawm cov iav nrog yooj yim. Nws yog qhov kev ua si-hloov rau kev lag luam iav, muab kev daws teeb meem ceev thiab txhim khu kev qha rau kev txiav iav.

Tau txais koj txhais tes ntawm lub tshuab laser iav niaj hnub no thiab paub txog cov kev xav tau ntawm cov cuab yeej siv niaj hnub no.

Khoom Description

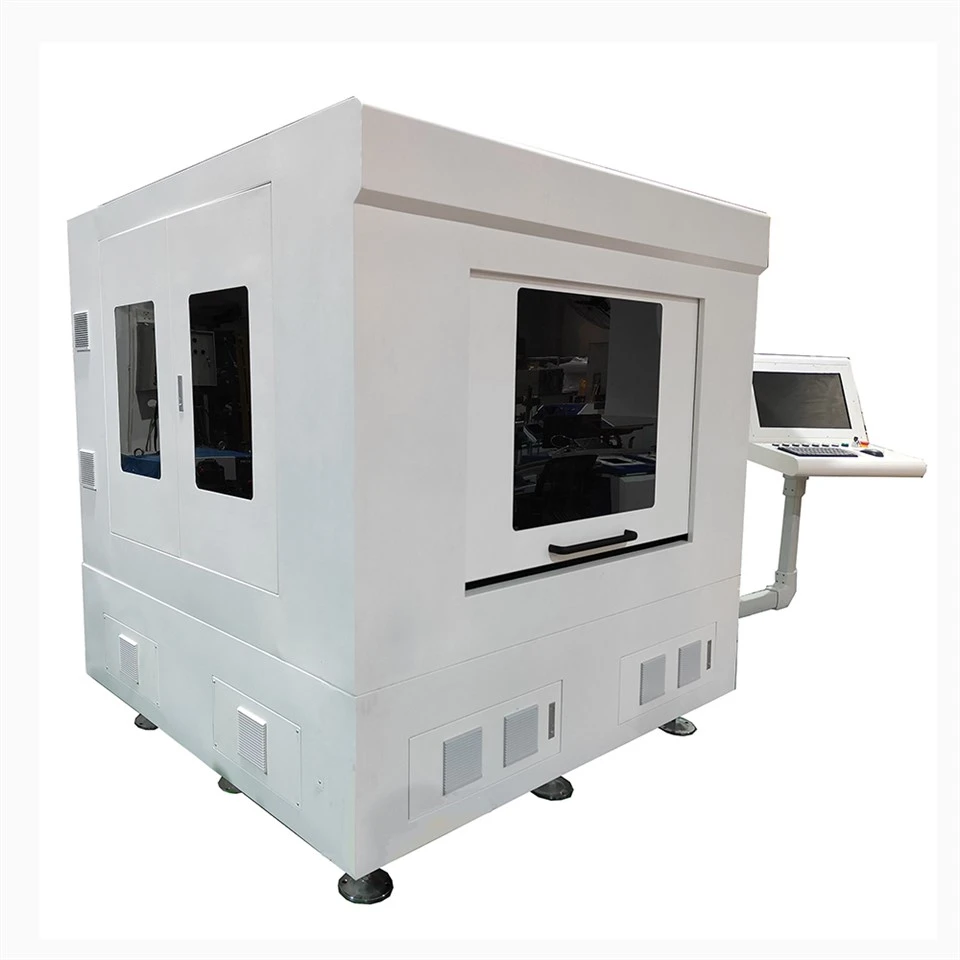

Khoom npe	Picosecond Laser iav txiav tshuab
Hom Laser	Fiber Laser
Txiav ceev	0-60mm/s
Txias hom	Dej Txias
Txiav cheeb tsam	600 x 600 mm
Laser Source Brand	RAYCUS/MAX/BWT
Laser Head Brand	QL/WSX/XH
Qhov hnyav	3500 KG
Warranty	1 Xyoo
Feature	Npog tag nrho
Txiav Thickness	Tsawg dua los yog sib npaug li 8 hli
Txiav nruab nrab tso zis zog	Ntau tshaj lossis sib npaug rau 70W
Split nruab nrab tso zis hwj chim	>60W
mem tes dav	<15ps
Tib mem tes zog	>400 yuj
Duplicate hom phiaj	±8μm
Fais fab mov	220V / 50HZ / 4KW lub cev muaj zog
Txoj kev hloov kho	Hluav taws xob tsom
Laser wavelength	1064nm ua
CCD system pixels	1.3 lab pixels, positioning raug 0.008mm (Yeem)

000101

000103

Cov khoom siv

Laser iav txiav tshuab yog cov cuab yeej siv ntau yam uas tau siv dav hauv kev lag luam xws li tsheb, aerospace, thiab architecture. Lawv muab precision, ceev, thiab efficiency txiav ntau hom iav, xws li tempered, laminated, thiab annealed iav. Cov tshuab no tseem muaj peev xwm tsim cov qauv tsim thiab cov duab uas nyuaj rau kev ua tiav nrog txoj kev txiav tsoos.

Nrog nws cov txiaj ntsig ntau, laser iav txiav tshuab txuas ntxiv hloov kho cov iav kev lag luam thiab muab cov peev txheej tshiab rau kev tsim thiab tsim tshiab.

product-750-519

Cov neeg tseem nug

Lub tshuab laser tuaj yeem txiav iav?

Yog lawm, lub tshuab laser tuaj yeem txiav iav. Laser txiav yog ib txoj kev meej thiab muaj txiaj ntsig uas siv lub teeb pom kev zoo los txiav los ntawm ntau yam ntaub ntawv, suav nrog iav.

Nrog rau kev nce qib ntawm thev naus laus zis, laser txiav tau dhau los ua ib txoj hauv kev nrov los tsim cov qauv zoo nkauj thiab zoo nkauj ntawm cov khoom iav xws li iav, hniav panels, thiab cov hniav nyiaj hniav kub. Nws muaj kev huv thiab meej txiav thiab tso cai rau ntau yam hauv kev tsim.

Laser txiav iav yog ib qho kev xaiv zoo rau cov neeg uas tab tom nrhiav kev ua tiav zoo uas yog ob qho tib si zoo nkauj thiab ua haujlwm zoo.

FAQ

1.Kuv tuaj yeem xaiv lub tshuab tsim nyog tshaj plaws li cas?

Thov qhia peb seb koj xav kom lub tshuab ua haujlwm li cas? Engraving, txiav, kos npe? Dab tsi ntawm cov ntaub ntawv tseem ceeb? Txiav / engraving, Max thickness rau txiav? Qhov chaw ua haujlwm loj npaum li cas koj xav tau?

2. Ntev npaum li cas tuaj yeem xa lub tshuab?

Lub tshuab nquag tuaj yeem xa tuaj tsis pub dhau 3 ~ 7 hnub. Customized tshuab xav tau 12 ~ 14 hnub.

3.Yog muaj kev pab cuam tom qab peb tau txais lub tshuab?

Yog lawm, peb muaj pab pawg ua haujlwm zoo tom qab muag los muab kev txhawb nqa rau peb cov neeg siv khoom. Peb cov txuj ci tuaj yeem pab koj nruab tshuab thiab muab kev cob qhia dawb rau koj tom qab koj tau txais lub tshuab.

4.Yog tias muaj qee qhov teeb meem rau qee qhov chaw thaum lub sijhawm lav, koj lub tuam txhab puas kho lossis hloov rau kuv?

Yog, peb yuav. Thov xa qhov tseem ceeb rov qab rau peb lub tuam txhab, peb yuav kho thiab xa rov qab rau koj dawb hauv lub sijhawm lav. Yog tias qhov teeb meem tsis tuaj yeem kho tau zoo, peb yuav xa ib qho tshiab rau koj hauv lub sijhawm lav dawb. PS: Tsis suav nrog cov khoom siv hluav taws xob thiab Man-made puas tsuaj.

5.Lub tshuab puas yuav xa tuaj rau kuv lub qhov rooj?

1) Feem ntau rau lub tshuab loj thiab hnyav, peb yuav hais nqe CFR. Txoj kev xa khoom zoo tshaj plaws rau cov khoom loj thiab hnyav yog los ntawm hiav txwv lossis huab cua. Peb xa cov khoom los ntawm hiav txwv rau shipping dawb rau koj lub hauv paus seaport nyob rau hauv koj lub teb chaws ( Xav tau koj nrhiav broker pab koj ua kev lis kev cai clearance ).

2) Rau lub tshuab me me, peb tuaj yeem hais nqe nrog DHL tus nqi nthuav qhia. Tom qab ntawd lub tshuab tuaj yeem xa tuaj rau koj lub qhov rooj.

6.Kuv puas tuaj yeem yuav cov khoom seem ntawm koj lub tuam txhab yog tias kuv muaj cov khoom seem yav tom ntej?

Yog, thov. Peb lub tuam txhab muab cov khoom seem rau tag nrho peb lub tshuab.

7.Tau kuv vim li cas thiaj xaiv koj lub tuam txhab?

1) Lub Hoobkas tshaj lij nrog tus nqi sib tw;

2) Kev tswj hwm zoo thiab kev pabcuam zoo meej: Tag nrho peb lub tshuab tau txais cov khoom zoo tshaj plaws → kuaj tshuab ua haujlwm zoo rau 3 hnub ua ntej xa khoom → xa cov yeeb yaj kiab ua haujlwm thiab tag nrho cov duab hauv qab daim ntawv teev npe rau cov neeg yuav khoom kuaj → tus neeg yuav khoom xyuas txhua yam yog suav nrog thiab txaus siab → Professional plywood pob kom tsis txhob muaj kev puas tsuaj → shipping tshuab

3) Muab kev txhawb nqa txhua lub sijhawm rau peb lub tshuab; Peb muaj cov kws tshaj lij pabcuam kev pabcuam tomqab muag los muab kev pabcuam rau peb cov neeg siv khoom dawb. Koj tuaj yeem tham nrog lawv txhua lub sijhawm yog tias koj xav tau.

4) Kev siv nruj tom qab kev muag khoom warranty.
5) Qhov tseem ceeb yog tias koj yuav tau txais cov khoom sib thooj tom qab koj them nyiaj.

8.Peb them koj li cas?

Thov tham nrog peb ua ntej. Tom qab peb paub meej tias lub tshuab thiab xaiv ib feem, cov khoom seem rau kev txiav txim nrog ib leeg, peb yuav muab qhov txuas rau kev txiav txim rau koj.

Cim npe nrov: laser iav txiav tshuab, Tuam Tshoj laser iav txiav tshuab manufacturers, lwm tus neeg, Hoobkas
